| Input maximum voltage | 48 VDC |
|---|---|
| Input maximum current | 1A |
| Filter type | Low pass filter |
| Wave guide | Ø30 |
| I/O | RJ45S |
| Shield Effectiveness | 60dB @ 1G~ 40GHz |

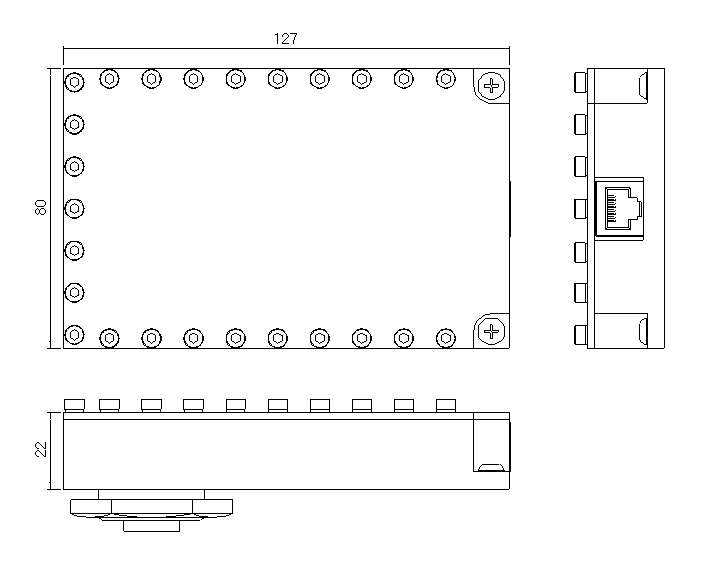

Size Information / External appearance▲
| Width | 80mm |
|---|---|
| Length | 127mm |
| Height | 22mm |
| Fixing hole bolt | M4 |
| Applied Panel Thickness | 5mm |
