| Input maximum voltage | 220 VAC |
|---|---|
| Input maximum current | 7A |
| Filter type | Low pass filter |
| Wave guide | Ø14 |
| I/O | Terminal block 3P |
| Shield Effectiveness | 60dB @ 1G~ 40GHz |

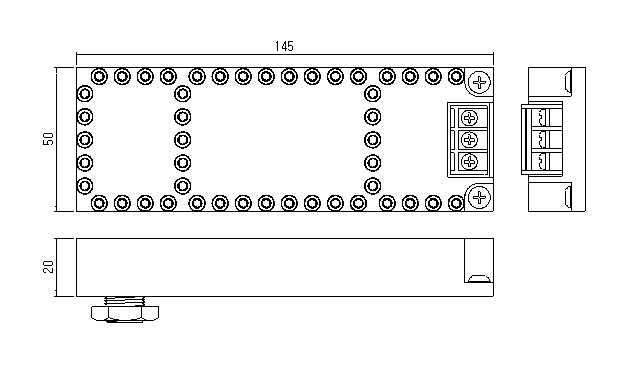

Size Information / External appearance▲
| Width | 50mm |
|---|---|
| Length | 145mm |
| Height | 22mm |
| Fixing hole bolt | M4 |
| Applied Panel Thickness | 5mm |
