| Input maximum voltage | 50VDC |
|---|---|
| Input maximum current | 100mA |
| Filter type | Low pass filter |
| Wave guide | Ø14 |
| I/O | 4P Terminal block |
| Shield Effectiveness | 60dB @ 6G - 40GHz |

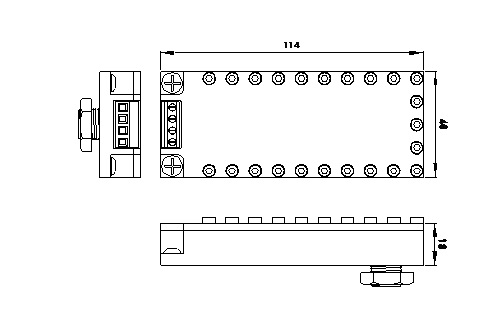

Size Information / External appearance▲
| Width | 46mm |
|---|---|
| Length | 114mm |
| Height | 18mm |
| Fixing hole bolt | M4 |
| Applied Panel Thickness | 5mm |
