| Number of Lines | 2L |
|---|---|
| Current | 10A |
| Voltage | 250VAC |
| DCR | under 50mΩ |
| Operating Temperature | <-20 ~ +80℃ |

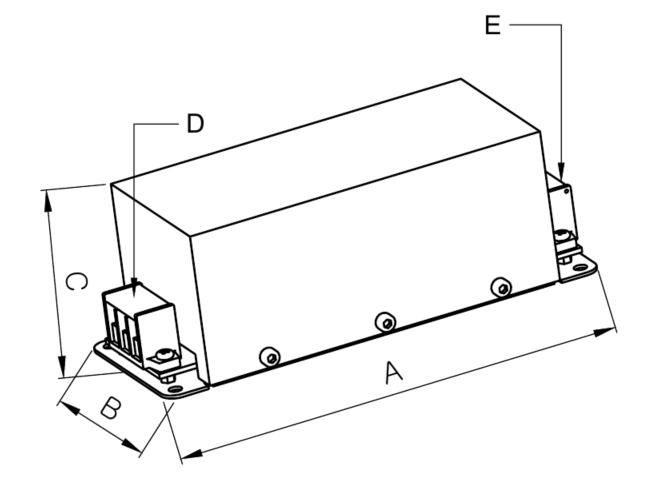

Size Information / External appearance▲
| A (Length) | 150 mm |
|---|---|
| B (Width) | 56 mm |
| C (Height) | 51 mm |
| D (Out Port) | Terminal block 3P |
| E (In Port) | Terminal block 3P |

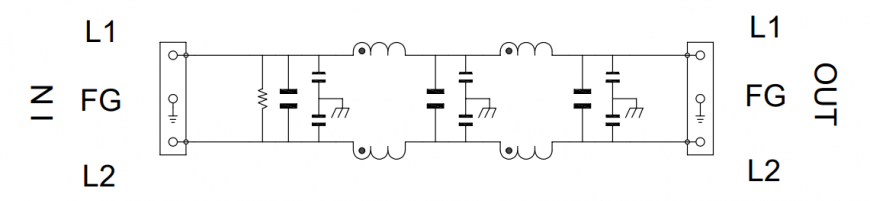

Attenuation / Circuit▲
