| Number of Lines | 2L |
|---|---|
| Current | 5A |
| Voltage | 250VAC |
| DCR | under 150mΩ |
| Operating Temperature | <-20 ~ +80℃ |

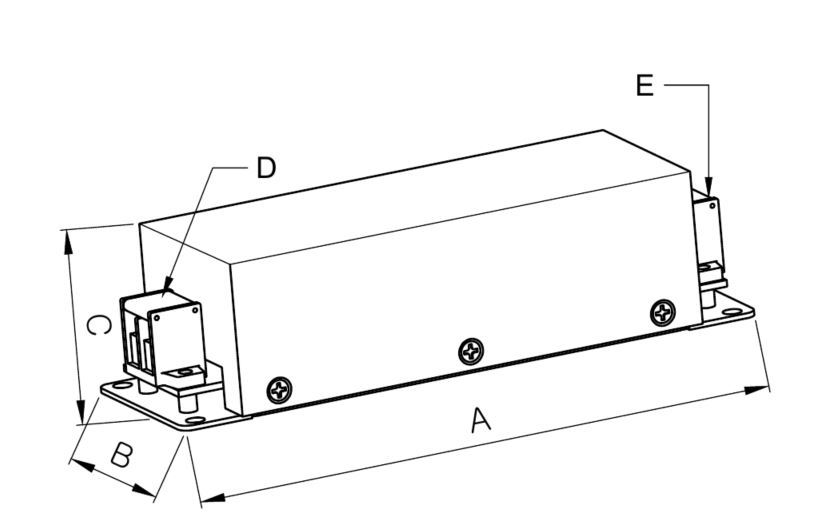

Size Information / External appearance▲
| A (Length) | 150 mm |
|---|---|
| B (Width) | 50 mm |
| C (Height) | 38 mm |
| D (Out Port) | Terminal block 2P |
| E (In Port) | Terminal block 2P |

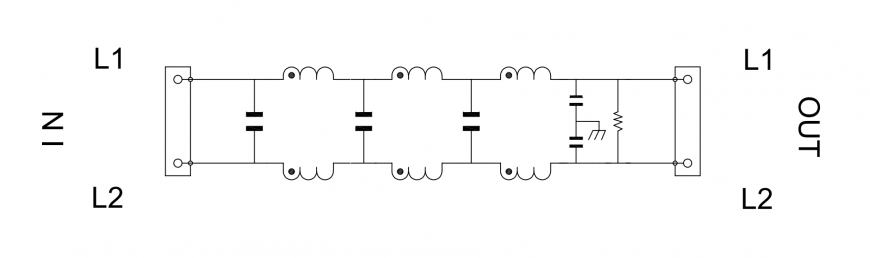

Attenuation / Circuit▲
