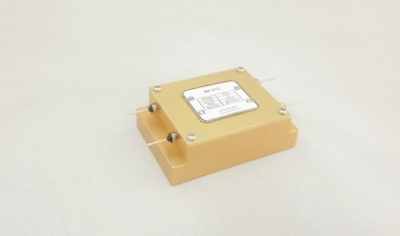

- MF-012
- 사양서 다운로드(PDF)
| Number of Lines | 2L |
|---|---|
| Current | 3A |
| Voltage | 28VDC |
| DCR | 25mΩ 이하 |
| Operating Temperature | <-20 ~ + 80℃ |

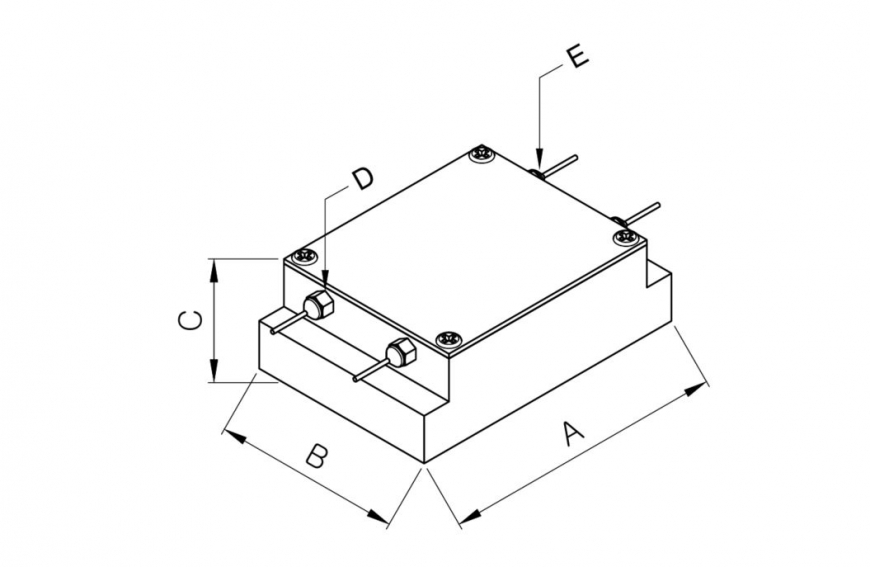

사이즈정보 / 외관도▲
| A (Length) | 60 mm |
|---|---|
| B (Width) | 40 mm |
| C (Height) | 20 mm |
| D (Out Port) | Feed Through |
| E (In Port) | Feed Through |
감쇄특성 / 회로도▲
