| Number of Lines | 2L |
|---|---|
| Current | 1A |
| Voltage | 100VDC |
| Frequency | - |
| Shield Effectiveness | 100dB @ 100kHz |
| Operating Temperature | <+20℃ |

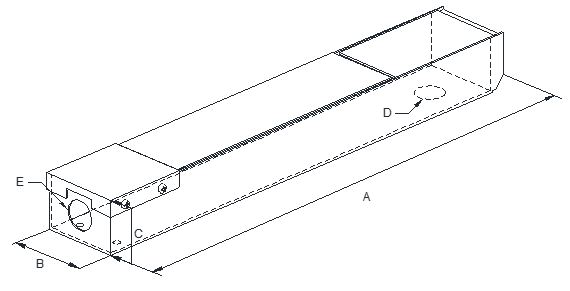

Size Information / External appearance▲
| A (Length) | 310 mm |
|---|---|
| B (Width) | 45 mm |
| C (Height) | 35mm |
| D (Out Port) | Ø18 |
| E (In Port) | Ø19 |

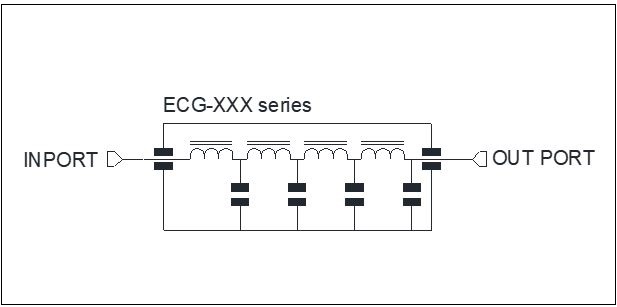

Attenuation / Circuit▲
