본문
| Number of Lines | 2L |
|---|---|
| Current | 5A |
| Voltage | 220VAC |
| Frequency | 50/60 Hz |
| Shield Effectiveness | 100dB @ 100kHz |
| Operating Temperature | -20 ~ +70 ℃ |

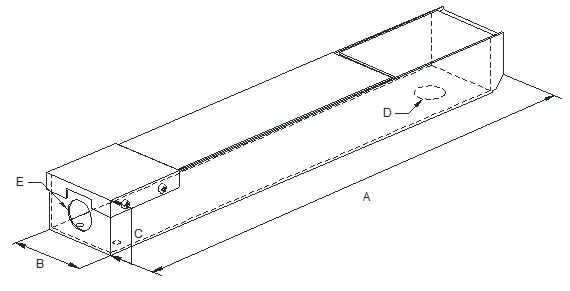

Size Information / External appearance▲
| A (Length) | 250 mm |
|---|---|
| B (Width) | 80 mm |
| C (Height) | 48 mm |
| D (Out Port) | Ø18 |
| E (In Port) | Ø19 |

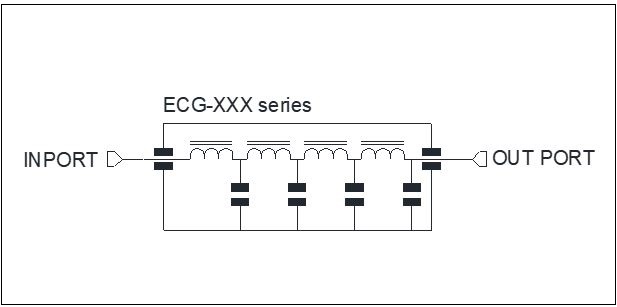

Attenuation / Circuit▲
