- ECG-C
- 필터설치가이드
- 사양서 다운로드(PDF)
| Number of Lines | 4L |
|---|---|
| Current | 5A |
| Voltage | 220VAC |
| Frequency | 50 / 60 Hz |
| Shield Effectiveness | 100dB @ 100kHz |
| Operating Temperature | <+20℃ |

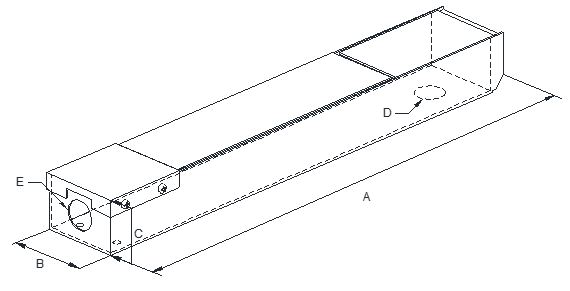

사이즈정보 / 외관도▲
| A (Length) | 400 mm |
|---|---|
| B (Width) | 80 mm |
| C (Height) | 40 mm |
| D (Out Port) | Ø18 |
| E (In Port) | Ø19 |

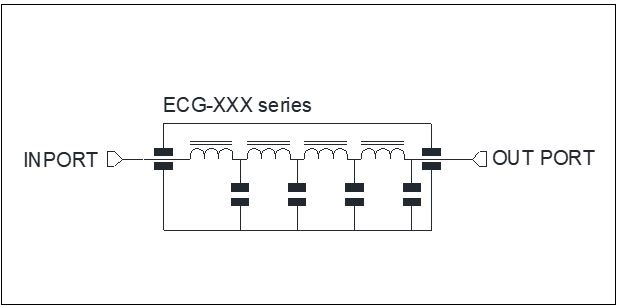

감쇄특성 / 회로도▲
