| Number of Lines | DC |
|---|---|
| Current | 30A |
| Voltage | 100VDC |
| Frequency | - |
| Shield Effectiveness | 100dB @ 14kHz |
| Temperature rise | <+20℃ |
| Voltage Drop | 0.3% |

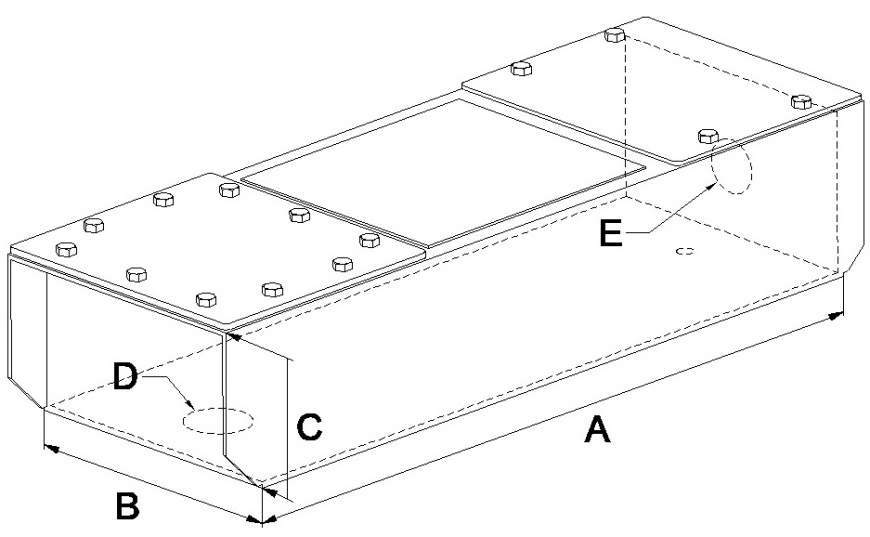

Size Information / External appearance▲
| A (Length) | 510mm |
|---|---|
| B (Width) | 140mm |
| C (Height) | 80mm |
| D (Out Port) | Ø32 |
| E (In Port) | Ø26 |

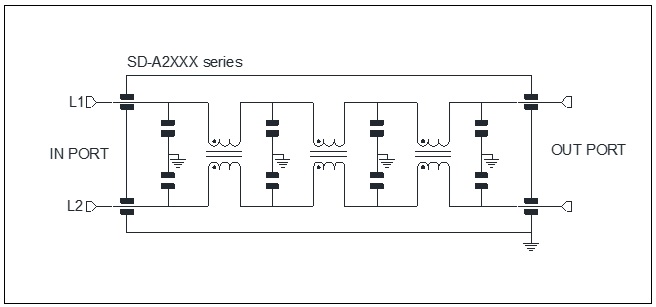

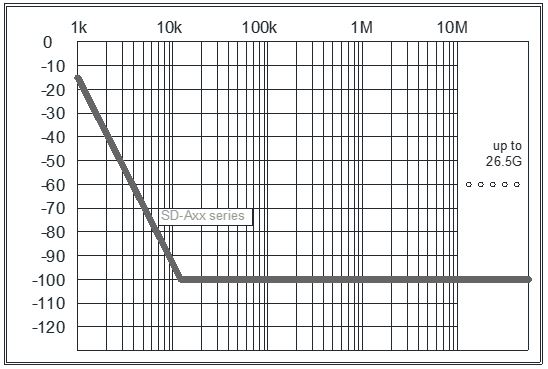

Attenuation / Circuit▲
