| Number of Lines | 1P2L |
|---|---|
| Current | 30A |
| Voltage | 220VAC |
| Frequency | 50 / 60Hz |
| Shield Effectiveness | 100dB @ 14kHz ~ 18GHz |
| Temperature rise | <+20℃ (Full Load) |
| Voltage Drop | 0.3% |

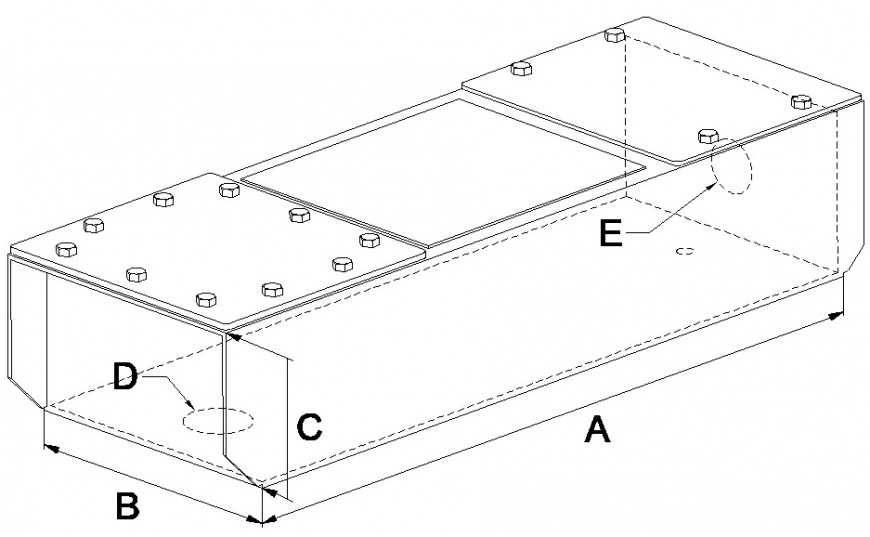

Size Information / External appearance▲
| A (Length) | 610mm |
|---|---|
| B (Width) | 140mm |
| C (Height) | 80mm |
| D (Out Port) | Φ32 |
| E (In Port) | Φ26 |

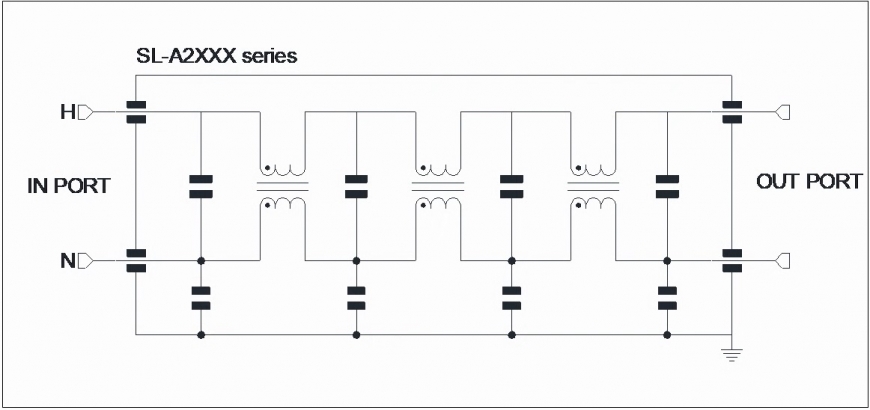

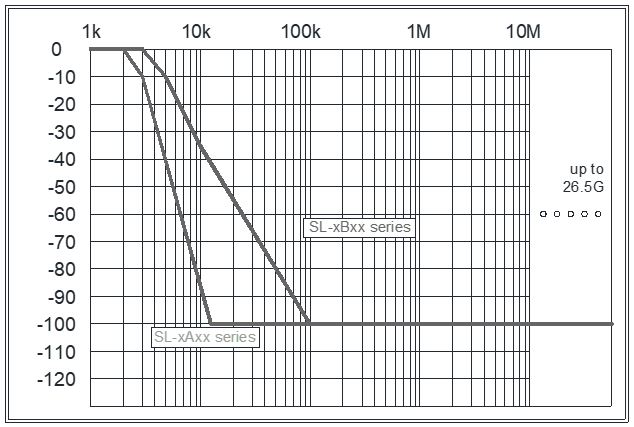

Attenuation / Circuit▲
