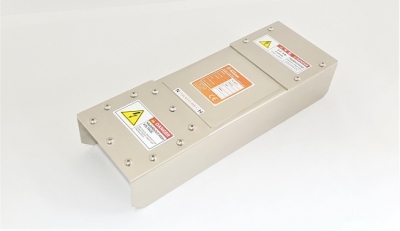

- SL-B4300
- 필터설치가이드
- 사양서 다운로드(PDF)
| Number of Lines | 2P4L |
|---|---|
| Current | 30A |
| Voltage | 380VAC |
| Frequency | 50 / 60Hz |
| Shield Effectiveness | 100dB @ 100kHz ~ 18GHz |
| Temperature rise | <+20℃ |
| Voltage Drop | 0.3% |

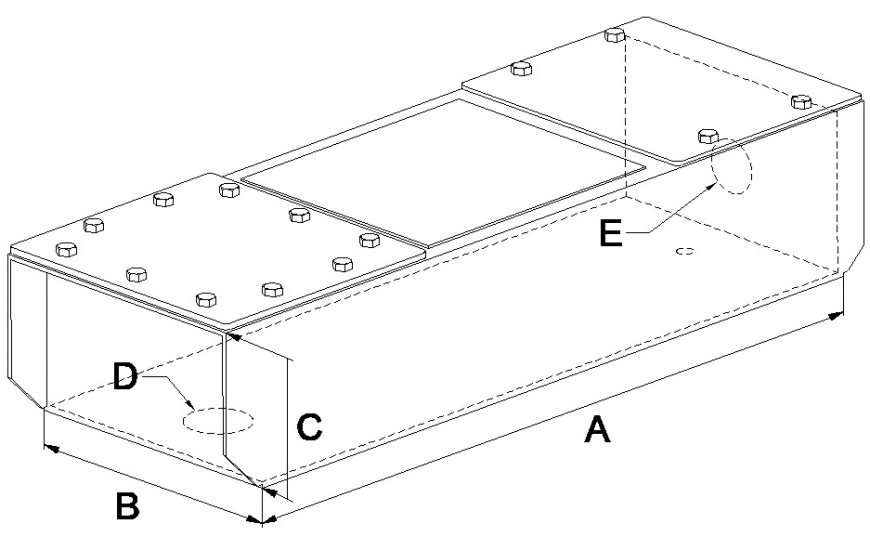

사이즈정보 / 외관도▲
| A (Length) | 540mm |
|---|---|
| B (Width) | 240mm |
| C (Height) | 90mm |
| D (Out Port) | Ø32 |
| E (In Port) | Ø26 |

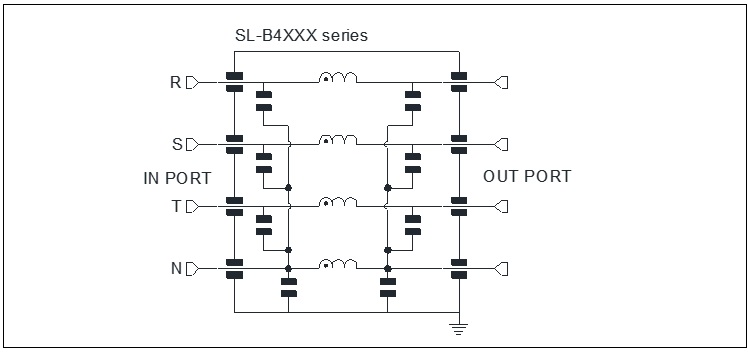

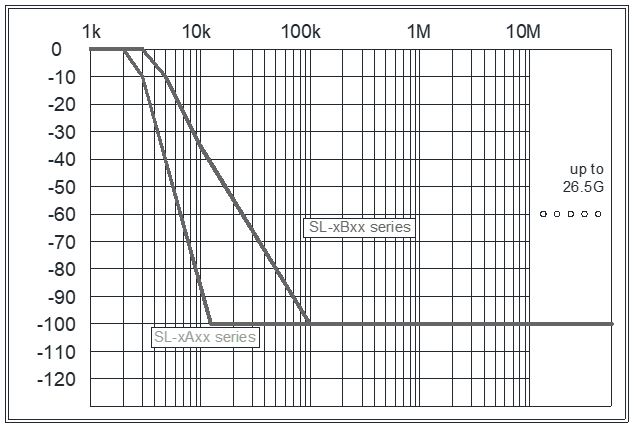

감쇄특성 / 회로도▲
